SFH 4253-Z
Manufacturer:
Osram
Mfr.Part #:
SFH 4253-Z
Datasheet:
Description:

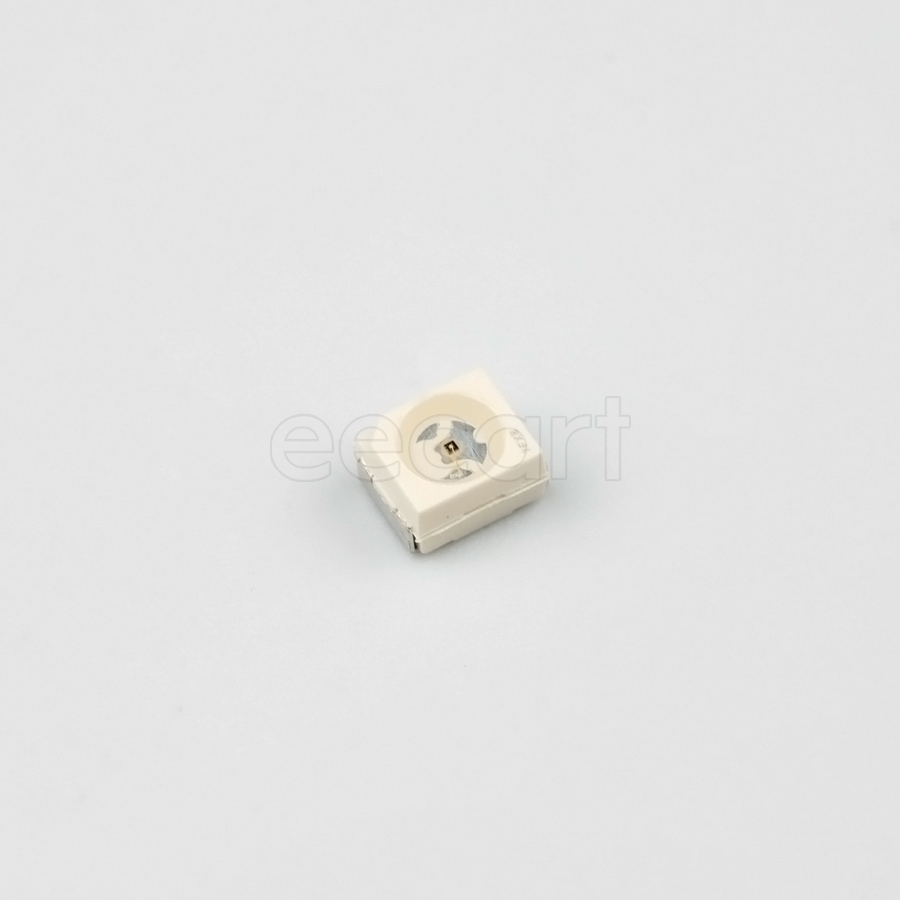

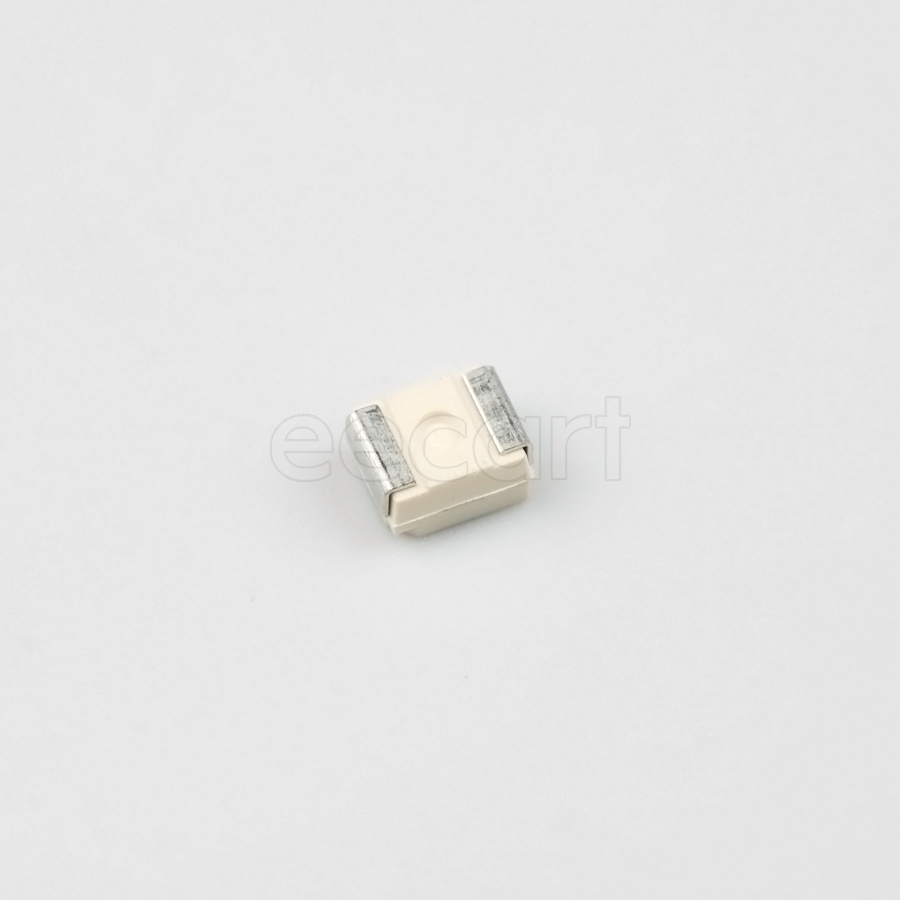

LEDs 3.20mmL×2.80mmW×1.90mmH SMD/SMT Neutral White 850 nm 70 mA 1.5 V
| Parameter | Value |
|---|---|
| Length | 3.4 mm |
| Width | 2.8 mm |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Power Rating | 140 mW |
| Height | 1.9 mm |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Orientation | Top View |
| Forward Current | 70 mA |
| Forward Voltage | 1.5 V |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Illumination Color | Neutral White |
| Lens Style | Flat, Round |
| Rise Time | 12 ns |
| Viewing Angle | 120 ° |
| Wavelength | 850 nm |
| Lens Transparency | Diffused |
| Lens Color | White |
| Peak Wavelength | 860 nm |
| Dominant Wavelength/CCT (K) | 850 nm |
| Reverse Voltage (DC) | 5 V |
| Schedule B | 8541402000 |
Stock: 70
Distributors
pcbx
pcbxUnit Price$0.57101
Ext.Price$0.57101
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.57101 | $0.57101 |
| 10 | $0.46042 | $4.60420 |
| 25 | $0.42281 | $10.57025 |
| 50 | $0.38828 | $19.41400 |
| 100 | $0.35657 | $35.65700 |
| 300 | $0.33118 | $99.35400 |
| 500 | $0.30759 | $153.79500 |
| 1000 | $0.29236 | $292.36000 |
